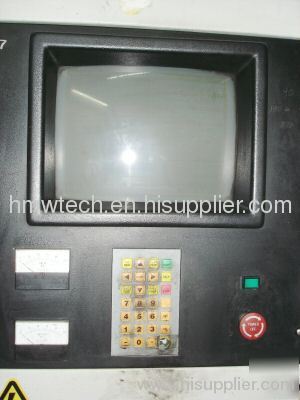

A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

This 12.1" TFT installation monitor has been designed as replacement for 12"-14" tube monitor. Conversion with plug and play is quick and easy with a few simple steps.

Technical specifications:
Display / resolution 12.1" TFT full color active / 800x600 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On Converter)

Active area LCD screen 246.0 x 184.5 mm (W x H)
Housing compatible: Using original

Power supply AC 85-240V rubber connector with safety fuse
Temperature range -10°C to 55°C

12.1" Replacement Monitor For Agie Mondo-20 Mondo-30 Mondo-50 Futura CNC EDM Machine
Agie Mondo 30, 60 amp machine CNC EDM Machine System Control Futura II
Agie Mondo 20, 60 amp machine CNC EDM Machine System Control Futura II
Agie Mondo 20, 60 amp machine CNC EDM Machine System Control Futura II
Agie Mondo 30, 60 amp machine CNC EDM Machine System Control Futura II
Agie Mondo 50 CNC EDM Machine System Control Futura II
Agie Elox Mondo 30 CNC EDM Sinking System Control Futura II
Agie Mondo Star 50 System Control Futura II
