A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running.

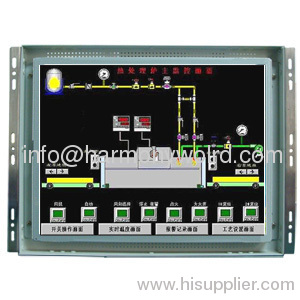

This 12.1" TFT installation monitor has been designed as replacement for 12"-14" tube monitor. Conversion with plug and play is quick and easy with a few simple steps.

Technical specifications:
Display / resolution 12.1" TFT full color active / 800x600 pixels
Brightness 370 cd
Frequency 12-45 kHz horizontal, 50-75 Hz vertical
Settings via OSD (On Converter)

Active area LCD screen 246.0 x 184.5 mm (W x H)
Housing compatible: Using original

Power supply AC 85-240V rubber connector with safety fuse
Temperature range -10°C to 55°C


Monitor Display For Multiplex 420 610 615 620 625 Mazak Multiplex CNC Turning Center
